If you’re involved in power distribution or electrical system design, you’ve probably heard about dry type distribution transformers—but what exactly are they, and why are they becoming the go-to choice for modern installations? Unlike traditional oil-filled transformers, dry type transformers use air for cooling and solid insulation, making them a safer, eco-friendly solution ideal for indoor and fire-sensitive environments. In this post, you’ll get a clear, concise explanation of what a dry type distribution transformer is, how it works, and why trusted suppliers like Kampa are leading the way with high-quality, customized options that meet today’s demanding standards. Let’s break it down.

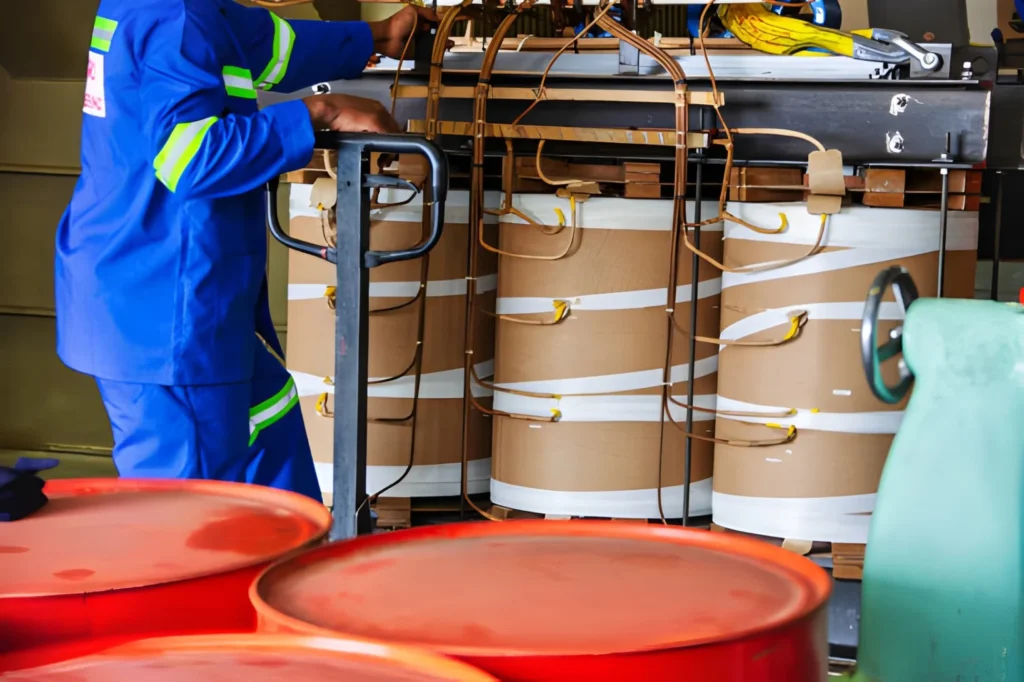

A dry type distribution transformer is an electrical device designed to step down medium voltage to low voltage, making power safe and usable for end consumers. Unlike oil-filled transformers, dry type transformers use air or gas for cooling and rely on solid insulation materials—such as epoxy resin—instead of liquid insulation like oil or other fluids. This makes them inherently safer and more environmentally friendly.
Dry type transformers are key players in power distribution systems, especially where safety, indoor installation, or environmental concerns matter. Their purpose is simple yet vital: converting medium voltage electricity from the grid down to a lower voltage, suitable for commercial, industrial, or residential use.
Dry type transformers are widely preferred for their safety, clean operation, and flexibility in installation environments, making them an essential part of modern electrical networks.
Dry type distribution transformers operate on the basic principle of electromagnetic induction. When alternating current flows through the transformer’s primary winding, it creates a magnetic field in the core. This changing magnetic field induces voltage in the secondary winding, allowing the transformer to step voltage levels up or down as needed, typically from medium to low voltage for safe end-use.
Cooling in dry type transformers is managed without oil. Instead, they rely on air and solid insulation to prevent overheating. There are two main cooling methods:
Insulation plays a crucial role in managing temperature rise and ensuring the transformer’s longevity. Dry type transformers use solid insulation materials like epoxy resins or vacuum pressure impregnated (VPI) coatings that withstand heat better and reduce risks of moisture damage. These materials maintain electrical integrity and keep temperature rise within safe limits, which is essential for reliable performance.
Dry type transformers come mainly in two types: Vacuum Pressure Impregnated (VPI) and Cast Resin Transformers (CRT). Each has distinct features and ideal uses depending on the application and environment.
| Transformer Type | Construction | Key Features | Typical Applications |
|---|---|---|---|
| Vacuum Pressure Impregnated (VPI) | Open-wound coils impregnated with insulating varnish under vacuum pressure | Good thermal performance, lightweight, suitable for indoor/outdoor use | General industrial, commercial buildings, moderate environment |
| Cast Resin Transformer (CRT) | Epoxy resin encapsulated coils (fully sealed) | Excellent moisture and dust resistance, high safety, fire-retardant | Harsh environments, hospitals, data centers, and indoor areas needing high fire safety |
| Feature | Dry Type Transformer | Oil-Filled Transformer |
|---|---|---|
| Cooling Method | Air or gas cooling with solid insulation | Oil immersion cooling with liquid insulation |
| Insulation | Solid epoxy resin or varnished windings | Mineral or synthetic oil insulation |
| Fire Safety | Fire-safe, no oil spill risk | Risk of fire or oil leaks |
| Maintenance | Low maintenance, no oil checks | Requires regular oil testing & servicing |
| Cost | Higher initial cost | Generally lower upfront cost |
| Efficiency | Slightly lower efficiency at high loads | Often better cooling for large loads |
| Installation | Ideal for indoor and sensitive areas | Mainly outdoor or specially designed indoor rooms |
| Environmental Impact | Eco-friendly, recyclable materials | Oil disposal and leak concerns |
Dry type distribution transformers offer several clear benefits that make them a preferred choice for many applications. One of their biggest advantages is superior fire safety. Since they use air or gas for cooling and solid insulation instead of oil, there’s no risk of oil leaks or spills that could cause fires or environmental hazards. This makes them much safer in indoor settings or areas where fire risk must be minimized.
They are also environmentally friendly and recyclable, as they avoid the use of hazardous oils and toxic liquids. This aligns well with growing global demands for greener industrial solutions. Maintenance requirements are low, since there’s no oil monitoring or replacement, leading to reduced downtime and operational costs. Plus, their long service life ensures reliable performance over many years.
Dry type transformers generally come with a higher initial cost compared to oil-filled models. This upfront investment can be significant, especially when selecting cast resin or VPI transformers for specialized applications. Additionally, dry type transformers tend to have a limited capacity for very high-power needs, making them less suitable for heavy industrial loads where oil-filled transformers dominate.
Another challenge is that some dry type designs may produce more noise and heat during operation. Without liquid cooling, managing temperature rise relies heavily on air circulation, which can lead to louder and warmer performance in enclosed or poorly ventilated spaces.
Dry type distribution transformers are widely used across various sectors due to their safety, reliability, and eco-friendly features. They are a top choice for commercial buildings such as offices, shopping malls, and hotels, where low maintenance and fire-safe operation are critical.
In healthcare and educational facilities, including hospitals and schools, these transformers provide dependable power with minimal risk of fire or oil leaks, making them ideal for sensitive environments.
They also perform well in industrial sites like chemical plants, data centers, and renewable energy installations. Here, resistance to moisture, dust, and short circuits ensures continuous operation even under demanding conditions.
| Specification | What to Look For | Why It Matters |
|---|---|---|
| Voltage Ratings | Match system voltage (e.g., 11kV/415V) | Ensures compatibility with your power setup |
| kVA Capacity | Based on load requirement | Determines transformer size and efficiency |
| Efficiency Standards | Compliance with DOE 2016 or similar | Saves energy and reduces running costs |
| Insulation Class | Common classes: Class H (180°C), Class F (155°C) | Affects temperature resistance and lifespan |
| Temperature Rise | Limits (e.g., 115°C max) | Keeps transformer cool and reliable |
| Impedance | Percentage value (typically 4-6%) | Influences voltage regulation and fault current |
| Enclosure Types | IP ratings (IP23, IP54 etc.) | Protection against dust, water, and environmental factors |
| Noise Levels | Measured in dB, lower is better | Important for indoor or noise-sensitive areas |
| Winding Materials | Copper vs. Aluminum | Copper offers better conductivity; aluminum reduces cost and weight |
Proper installation is key to getting the most out of your dry type distribution transformer. Start by ensuring good ventilation around the unit to prevent overheating. Keep enough clearance on all sides—usually at least a few inches—to allow natural air flow and easy access for maintenance. Mount the transformer on a sturdy, level platform that can support its weight and reduce vibrations.
Routine maintenance is straightforward but important. Regularly check for dust, dirt, and moisture buildup on the enclosure and cooling vents, as these can reduce efficiency and cause overheating. Inspect connections and wiring for any signs of wear or loose fittings. Monitoring temperature rise during operation helps catch overheating issues early.
| Factor | Impact on Price |
|---|---|
| Transformer size | Larger capacity means higher cost |
| Type | Cast resin (CRT) tends to cost more than VPI due to materials |
| Features | Special enclosures, cooling methods, or insulation classes add cost |
| Customization | Tailored designs for unique site needs affect pricing |
Choosing the right supplier is crucial. Kampa provides high-quality dry type transformers that meet international quality standards. Their products come with reliable delivery schedules and customizable options tailored to your power distribution needs.
Kampa offers reliable, high-quality dry-type power transformers designed to meet the diverse needs of global customers. Whether you need customized dry type transformers tailored for specific voltage levels, kVA ratings, or environmental conditions, Kampa delivers precision-made solutions.
| Feature | Benefit |
|---|---|
| Customization Options | Voltage, enclosure type, kVA, cooling methods adapted to your needs |
| Competitive Pricing | Cost-effective without compromising quality |
| Supplier Support | Responsive service and technical assistance worldwide |
| Safety Focus | Fire-resistant, eco-friendly, and low-maintenance designs |
| Efficiency | High operational efficiency with low losses |
With a firm commitment to safety, efficiency, and customer satisfaction, Kampa ensures every dry-type power transformer performs reliably, whether installed indoors or in challenging environments. Explore Kampa’s full range of medium and high voltage power solutions for your power needs.
