Every transformer that crosses a border is priced, taxed and cleared on the basis of one decision taken long before the vessel sails: its customs classification. The transformer HS code decides which duty rate applies, which certificates the border authority checks, and in a growing number of markets whether the unit qualifies for a reduced rate at all. Getting it wrong rarely costs a few dollars of duty — it costs weeks at port, storage, demurrage and a re-valuation argument with customs.
This guide is written for importers, EPC procurement teams and distributors buying oil-immersed power transformers and dry-type units from China. It covers how heading 8504 is really divided, where classification goes wrong, what duty treatment applies, what a seaworthy export crate must contain, when to book a container and when to book breakbulk, and the document pack that clears a transformer without a detention.

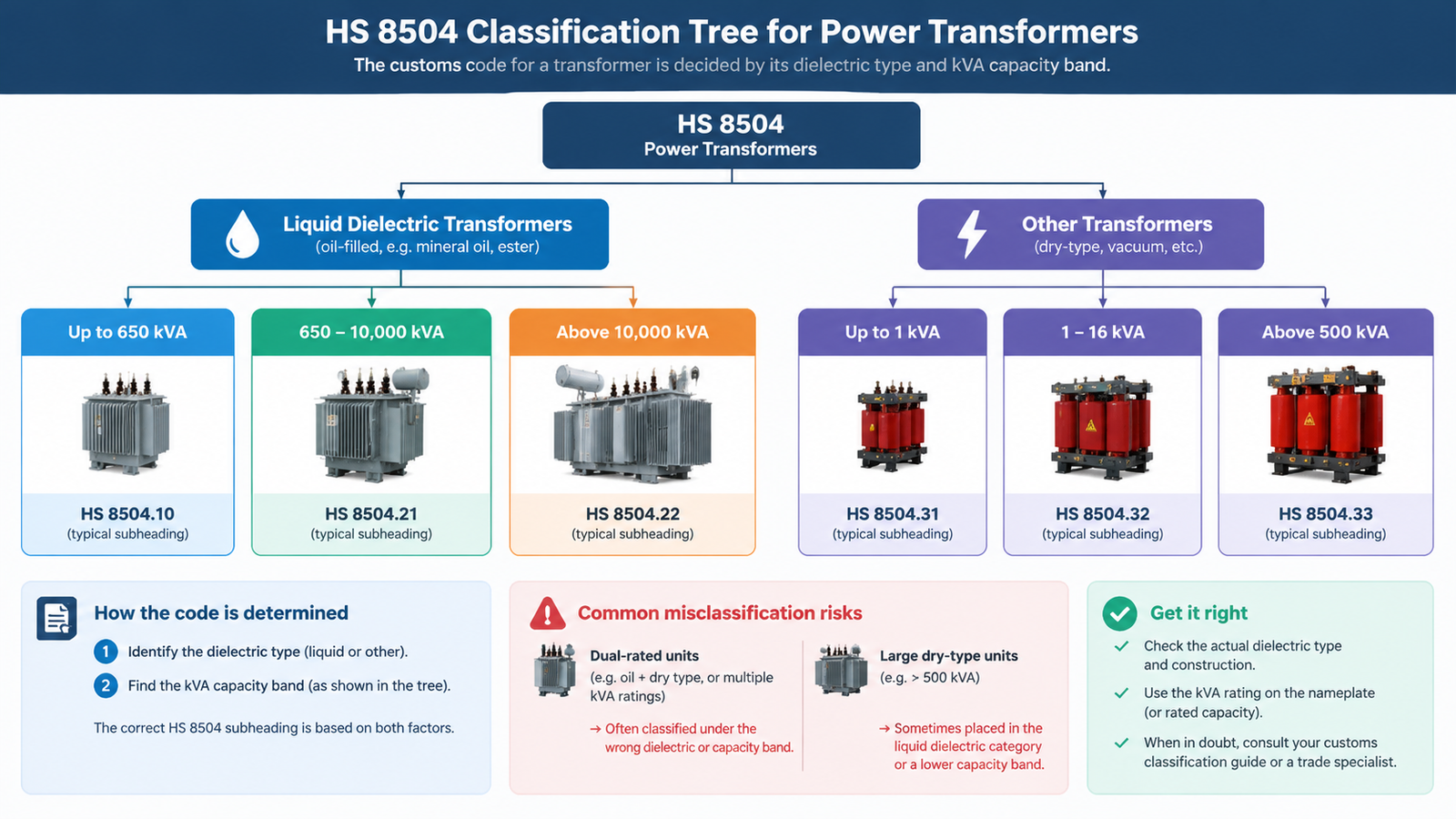

All transformers, static converters and inductors sit inside one four-digit heading: 8504. The subheadings below it split on two things only — dielectric type and rated capacity in kVA. Nothing else moves the code: not the vector group, not the tap changer, not the enclosure, not the winding material.
| HS code | What it covers | Capacity band |
|---|---|---|
| 8504.21 | Liquid dielectric transformer | Not exceeding 650 kVA |
| 8504.22 | Liquid dielectric transformer | Over 650 kVA up to 10,000 kVA |
| 8504.23 | Liquid dielectric transformer | Over 10,000 kVA |
| 8504.31 | Other transformer: dry-type, cast resin, VPI, encapsulated | Not exceeding 1 kVA |
| 8504.32 | Other transformer | Over 1 kVA up to 16 kVA |
| 8504.33 | Other transformer | Over 16 kVA up to 500 kVA |
| 8504.34 | Other transformer | Over 500 kVA |
| 8504.40 | Static converters, rectifiers, inverter assemblies | By function, not by kVA |
| 8504.90 | Parts: bushings, radiators, tanks, cores, laminations | By part, not by rating |
The word to read carefully is other. Group 8504.31 to 8504.34 is where dry-type, cast resin, vacuum pressure impregnated and encapsulated units all land, regardless of the fact that they are transformer products. The capacity bands in that group run much lower than the liquid dielectric ones, which is the single most common source of misclassification.
Classification is a legal statement, not a description. Four situations account for most of the disputes and delays on transformer imports.
A transformer designed for ONAN and ONAF cooling carries two rated capacities on its nameplate — for example 16,000 kVA self-cooled and 20,000 kVA with fans running. Only one capacity determines the subheading, and the declaration must use the higher forced-cooling rating. Declaring the self-cooled figure moves a 20 MVA unit into the wrong band, and automated classification screening in the United States and the European Union is built to flag exactly that mismatch.
A 2,000 kVA cast resin unit — the size class covered by our epoxy resin dry-type transformer range — is 8504.34, not 8504.31 or 8504.33. Both the dielectric group and the capacity band have to be read off the nameplate before the code is chosen, and the ratings a compliant unit must state are listed in our reference on dry-type transformer specifications.
A rectifier transformer, an inverter-duty unit built into a drive package, or a transformer shipped as part of a UPS static converter can be classified as a static converter under 8504.40 instead of as a transformer. If the transformer arrives as an accessory to a machine built for another purpose, the classification can move again, to the heading of the machine. This is the point at which a broker’s opinion is worth more than a supplier’s invoice description.
Mineral oil, synthetic ester, silicone and natural ester behave differently at the border. Enforcement on the declared dielectric fluid has tightened, so the invoice description must match the safety data sheet item by item rather than leaving the buyer to discover the difference at inspection.
Most-favoured-nation duty on transformers is modest. In the United States, 8504.21 and 8504.22 enter free, while 8504.23, 8504.33 and 8504.34 carry 1.6% and 8504.32 carries 2.4%. The European Union and the United Kingdom apply a 0% third-country duty rate across the heading. India, Vietnam and Thailand are a different story — some subheadings in those markets carry double-digit rates, which is why the destination market decides how much the classification exercise is worth.
The number that really moves a landed cost is not the MFN rate. Since 6 April 2026, the United States Section 232 metals framework has treated transformers as part of a unified derivative-article regime, and the duty is applied to the full customs value of the unit rather than to the metal content alone.
| Category | Rate on customs value | Applies to |
|---|---|---|
| Standard derivative article | 25% | Transformers classified in 8501 to 8504 |
| Reduced list, in force to 31 December 2027 | 15% floor | Large transformers above 10,000 kVA (8504.23) and similar grid equipment |
| Standard derivative article from 2028 | 25% | The same reduced-list goods, once the temporary rate expires |
| United Kingdom origin derivatives | 15% | UK-origin derivative articles |
One threshold matters as much as the rates. For derivative articles classified outside chapters 72 to 76, the steel duty applies only where steel makes up at least 15% of the total weight of the article. Below that threshold the derivative duty does not attach. The annexes to these measures are amended by proclamation rather than by legislation, so confirm the figures against the current annexes with your customs broker before quoting a landed cost.
Duty is calculated on the CIF value, and value-added tax or GST is then charged on CIF plus duty. A workable model therefore has six lines: FOB unit price, international freight, marine insurance, import duty, VAT or GST, and destination port charges with inland transport. Two are routinely forgotten. A nitrogen-blanketed unit needs oil, labour and testing at destination before energisation, and a spare bushing set is cheaper bought with the transformer than shipped alone six months later. Our guide to power transformer pricing by kVA covers the factory-side figures that feed the top of this model.

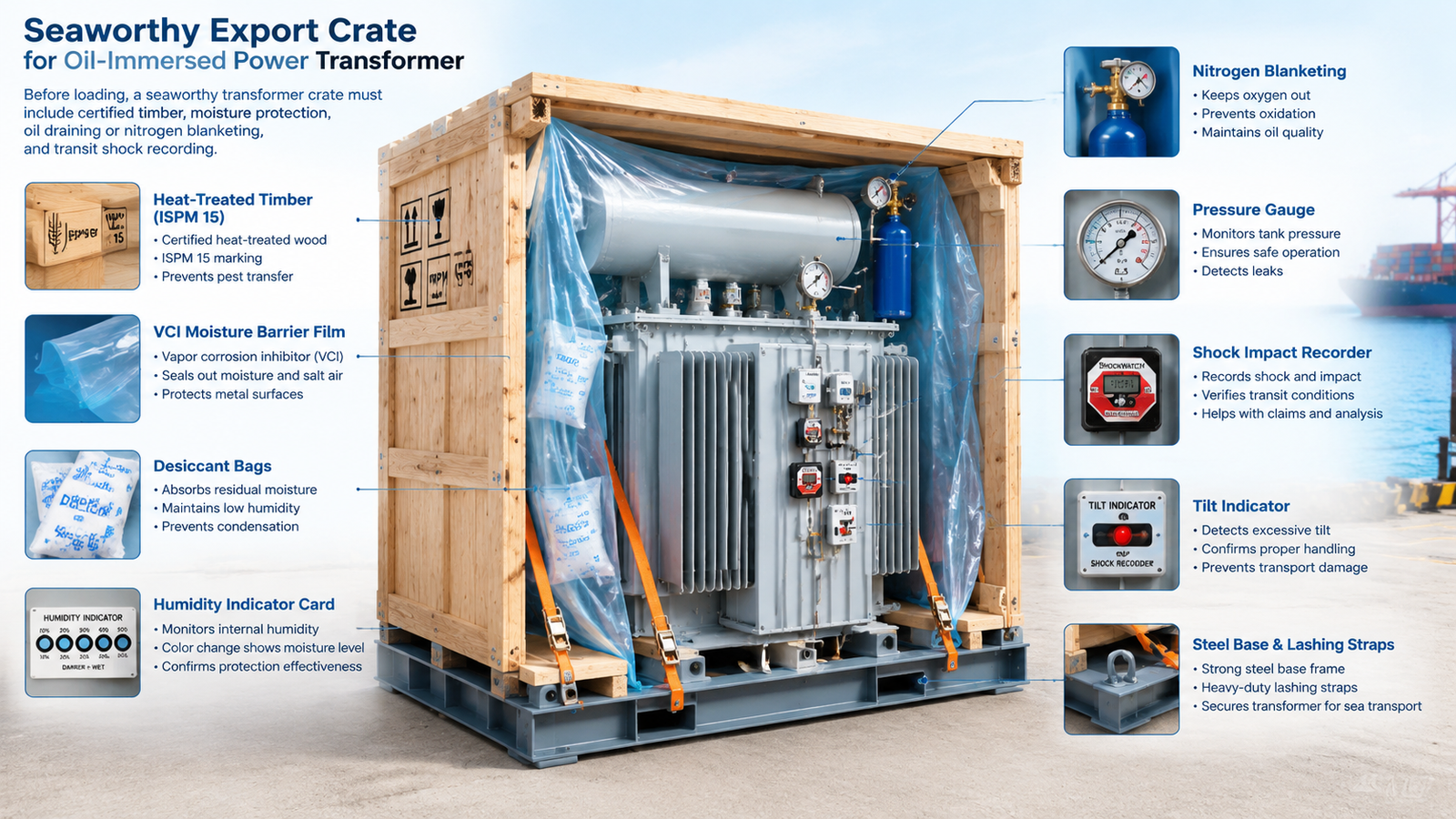

Transformer damage in transit almost never comes from a single catastrophic blow. It comes from vibration over three weeks, condensation inside a crate that breathes, and a unit that shifted two centimetres on every rolling movement. Packaging grade scales with weight.
| Unit weight | Standard export packaging |
|---|---|
| Up to about 500 kg | Export plywood crate on a wooden pallet |
| 500 kg to 2,000 kg | Reinforced plywood crate on a steel base frame |
| Over 2,000 kg | Steel-timber composite crate or welded steel frame with multi-point lashing and an anti-tilt design |
| Beyond container envelope | Flat rack, open top or breakbulk, on a securing plan approved by the line |
Confirm every item below against photographs before loading, not after arrival.
An oil-immersed transformer leaves the factory in one of two states, and the difference changes your receiving procedure. Large units are normally drained and shipped under a dry-air or nitrogen blanket with a pressure gauge fitted to the tank, then filled and tested on site. Smaller distribution units, such as the oil-immersed distribution transformer range, are often shipped oil-filled to remove site oil handling altogether. Confirm which state you are buying: it affects the weight on the crate, the documents in the pack and the site work in your programme. On substation projects with a project-specific tank and cooling arrangement, the same confirmations apply to every 35 kV oil-immersed transformer in the order.
A shock recorder and a tilt indicator inside the crate log what happened between the factory gate and your site, and photographs of loading with a short video of the lashing are the evidence a cargo insurer will actually accept. Without them a damage claim is one party’s word against another’s, and general average can leave your container held at destination until a bond is posted.
Container choice is a weight and envelope calculation, not a price comparison. A standard 40-foot box looks empty long after it has reached its payload limit, and out-of-gauge cargo needs the line’s approval before booking, not at the terminal.
| Equipment | Practical payload | Typical fit |
|---|---|---|
| 20 ft general purpose | About 21 to 22 t | Distribution units and small power transformers |
| 40 ft general purpose or high cube | About 26 to 27 t | One mid-size unit plus accessories |
| 20 ft open top | About 28 t | Over-height units loaded from above by crane |
| 20 ft flat rack | About 28 to 31 t | Units beyond container width or height |
| 40 ft flat rack, standard and high cube | About 39 t to 52 t | Large power transformers, on a line-approved securing plan |
| Breakbulk vessel | Ship crane capacity | Above roughly 45 t or outside any container envelope |
Three rules apply to whatever equipment you book. Verified gross mass must be declared under the SOLAS convention before the box is allowed to load. Lashing and blocking follow the line’s securing manual, and the layout has to be agreed in advance for flat rack cargo. And plan the calendar: a typical Asia to US West Coast ocean leg runs 15 to 25 days, to the US East Coast 30 to 40 days depending on routing, and to North-West Europe roughly 25 to 35 days, with three to seven days added for clearance at either end.
Most transformer detentions are document problems, not tax problems. Assemble and check the pack before the container is sealed.
| Document | Issued by | What customs checks |
|---|---|---|
| Commercial invoice | Supplier | HS code, rated capacity, dielectric fluid, winding material, serial numbers, Incoterm, declared value |
| Packing list | Supplier | Package count, gross and net weight, dimensions, shipping marks |
| Bill of lading | Carrier | Consignee details, freight terms, telex release where used |
| Certificate of origin | Chamber of commerce | Preferential duty eligibility under the applicable trade agreement |
| Factory acceptance and type test reports | Manufacturer | Consistency between declared classification and equipment, and conformity to the standard |
| Non-PCB declaration and insulating oil test report | Manufacturer, laboratory | Mandatory for oil-immersed units in many markets, and a frequent cause of detention when missing |
| Safety data sheet | Manufacturer | Fluid composition and handling classification |
| Market certification | Certification body | CE with a declaration of conformity, SASO and SABER, TISI or EAC, depending on destination |
| IPPC mark or fumigation certificate | Packer | Solid-wood packaging compliance |
Two habits prevent most of this. Insist on English-language test reports and certificates, because Chinese-only documents are not accepted at the destination port. Then check that model number, capacity and serial number match across the invoice, nameplate, test reports and certificates — a generic certificate with a different model number on the header is worse than no certificate, because the shipment is treated as unverified. The test programme that produces those reports is described in our guide to power transformer testing and factory acceptance tests.
Freight quotes are only comparable once the Incoterm is fixed, because the term decides who books, who insures and the exact moment risk transfers.
| Term | Freight booked by | Insurance | Risk transfers |
|---|---|---|---|
| EXW | Buyer | Buyer | At the factory |
| FOB | Buyer | Buyer | When cargo is on board at the port of loading |
| CIF | Seller | Seller, minimum cover only | On board at the port of loading |
| DAP | Seller | By agreement, usually buyer | At the named destination, not unloaded |
| DDP | Seller | Seller | At destination, duty paid |
On CIF terms the seller insures only to 110% of contract value with minimum clauses, and those clauses are far narrower than the all-risk cover a transformer needs — the gaps are exactly the events that hurt, from handling damage and water ingress to theft and general average contribution. Institute Cargo Clauses (A) cover costs roughly 0.3% to 0.6% of CIF value, a rounding error against a custom-built unit. Also check what the freight quote excludes: lift-on and lift-off at both ends, out-of-gauge surcharges and destination terminal handling are frequently billed separately, and they are material on heavy project cargo.
Classification, packing and documentation are three separate decisions that land on the same invoice line, and each one is cheaper to fix before loading than after arrival. Confirm the subheading from the nameplate using the highest cooling rating, ship to an agreed packing standard with recorded transit data, and buy all-risk cover rather than the minimum the Incoterm requires. If you are planning an import and want the packing specification, shipping state and document pack checked against your destination market, send us the unit rating and destination port and we will come back with the figures.
Oil-immersed units use 8504.21 up to 650 kVA, 8504.22 from above 650 kVA to 10,000 kVA, and 8504.23 above 10,000 kVA. The subheading is set by rated capacity only, so a dual-rated ONAN and ONAF unit is declared at its higher forced-cooling rating.
Dry-type, cast resin and encapsulated units fall into the “other transformers” group: 8504.31 up to 1 kVA, 8504.32 to 16 kVA, 8504.33 to 500 kVA and 8504.34 above 500 kVA. A large dry-type unit is therefore 8504.34, not 8504.31.
Any solid-wood crate, pallet or blocking must be heat-treated or fumigated and marked to ISPM 15 with the IPPC stamp. Processed plywood is exempt from treatment but is normally covered by a declaration of no solid-wood packaging.
Weight stops the loading before volume does. A 20-foot general purpose container carries roughly 21 to 22 tonnes, so small distribution units may go several to a box while a single mid-size power transformer can fill one on its own. Units beyond the container envelope move on a flat rack or as breakbulk cargo.
At minimum a commercial invoice showing the HS code and fluid type, a packing list, the bill of lading, a certificate of origin, English factory acceptance and type test reports, an insulating oil test report, a non-PCB declaration and the safety data sheet — plus CE with a declaration of conformity, SASO and SABER, TISI or EAC where the destination requires it.
All-risk marine cargo cover typically runs about 0.3% to 0.6% of CIF value, so a USD 200,000 unit costs roughly USD 600 to USD 1,200 to insure. Insist on Institute Cargo Clauses (A) rather than the minimum cover a CIF sale technically requires.
